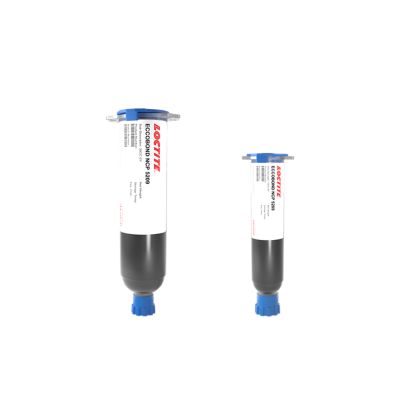

LOCTITE® ECCOBOND NCP 5209
Características y Ventajas
A yellow non-conductive die-attach adhesive for thermal compression bonding processes in flip-chip to laminate assembly.
LOCTITE® ECCOBOND NCP 5209 is a pale yellow, acrylate-based, non-conductive die-attach adhesive for advanced flip-chip Cu pillar applications. It leverages thermal compression bonding for robust bump protection. It is compatible with small assembly gaps and tight pitches and is typically used as a pre-applied underfill to provide optimal fluxing activity for good solder joint formation. It cures fast when exposed to heat.
Leer más
Documentos y Descargas
¿Está buscando un TDS o SDS en otro idioma?
Documentos adicionales
Información técnica
| Coeficiente de dilatación térmica (CDT), Above Tg | 80.0 ppm/°C |
| Coeficiente de dilatación térmica (CDT), Below Tg | 28.0 ppm/°C |
| Contenido iónico extraíble, Cloruro (CI-) | 10.0 ppm |
| Contenido iónico extraíble, Potasio (K+) | 10.0 ppm |
| Contenido iónico extraíble, Sodio (Na+) | 10.0 ppm |
| Módulo de almacenaje, DMA @ 25.0 °C | 7.3 GPa (7300.0 N/mm² , 1058775.0 psi ) |
| Temperatura de almacenaje | -40.0 °C |
| Temperatura de transición vítrea (Tg) | 145.0 °C |
| Viscosidad, @ 25.0 °C Spindle 51, speed 5 rpm | 12500.0 mPa.s (cP) |
