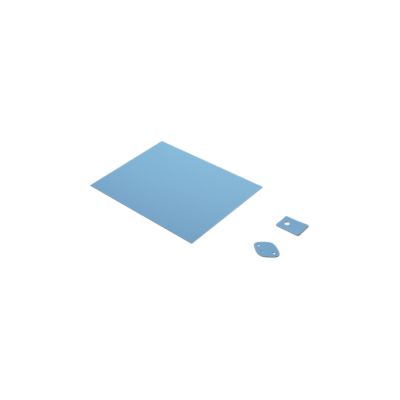

BERGQUIST® GAP PAD® TGP HC3000
Known as Gap Pad® HC 3.0
Features and Benefits
Thermally conductive, silicone-based, fiberglass reinforced GAP PAD filler with a high thermal conductivity rating of 3.0 W/m-K.
BERGQUIST® GAP PAD® TGP HC3000 is designed with a unique filler package and low modulus material to provide exceptional thermal performance at low pressures. The highly conforming material provides excellent wet-out characteristics at the interface of rough and irregular surfaces and is ideal for fragile applications that require low stress on components and boards during assembly.
Read More
Documents and Downloads
Looking for a TDS or SDS in another language?
Additional Documents
Technical Information
| Carrier type | Fiberglass |
| Color | Blue |
| Flame rating | V-0 |
| Operating temperature | -60.0 - 200.0 °C |
| Standard thickness | 0.508 - 3.175 mm |
| Thermal conductivity | 3.0 W/mK |
| Young's modulus, ASTM D575 | 110.0 KPa (16.0 psi ) |
BERGQUIST® GAP PAD® TGP HC3000
Thermally conductive, silicone-based, fiberglass reinforced GAP PAD filler with a high thermal conductivity rating of 3.0 W/m-K.
