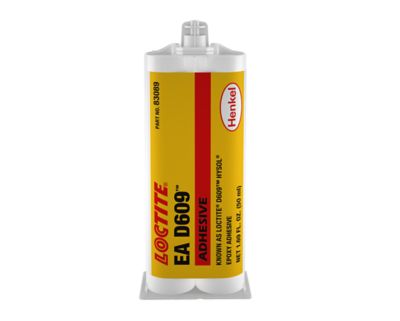

LOCTITE® EA D609
Features and Benefits
2-part, self-leveling, epoxy formulation recommended where fast, room temperature-curing is required for high performance structural bonding.
LOCTITE® EA D609 is a very clear, 2-part, self-leveling, exceptional epoxy formulation recommended where fast, room temperature-curing is required. It is suitable for high performance structural bonding applications requiring a combination of very fast room temperature-cure, low shrinkage and excellent mechanical properties.
- Recommended for lower temperature or wet industrial bonding applications
- Excellent electrical insulator
- Mixes easily at room temperature
- Provides superior resistance to vapors and gases, water, galvanic action, petroleum fuels, salt solution and many other organic and inorganic compounds
Documents and Downloads
Looking for a TDS or SDS in another language?
Technical Information
| Cure schedule, @ 77.0 °C | 24.0 hr. |
| Cure type | Room temperature (ambient) cure |
| Number of components | 2 part |
| Recommended for use with | Metal |
| Shear strength, Aluminum (etched) | 1800.0 psi |
| Storage temperature | 8.0 - 21.0 °C |
| Mixed | |
| Pot life, Mixed @ 25.0 °C 20 g mass | 5.0 min. |
| Resin | |
| Viscosity, Resin | 11000.0 - 19000.0 mPa·s (cP) |
| Hardener | |
| Viscosity, Hardener | 11000.0 - 19000.0 mPa·s (cP) |
