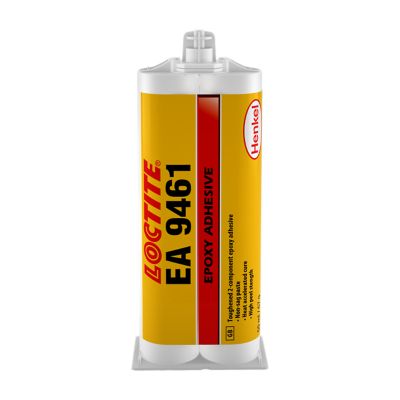

LOCTITE® EA 9461
Features and Benefits
2-part, thixotropic, structural bonding epoxy adhesive that cures to provide a toughened bond and is therefore ideal for joining dissimilar substrates.
LOCTITE® EA 9461 is a 2-part, grey, structural bonding epoxy that cures at room temperature to provide a toughened bond. It is therefore ideal for joining dissimilar substrate materials including metals, motorering thermoplastics and thermoset laminates such as SMC. Its thixotropic properties make it good for gap filling and it provides both high peel and shear strength.
- Creates a tough bond
- Good choice for dissimilar materials
- Thixotropic and non-sagging
- Good for gap filling
- High peel and shear strength
Documents and Downloads
Looking for a TDS or SDS in another language?
Technical Information
| Fixture time | 240.0 min. |
| Mix ratio, by volume | 1 : 1 |
| Peel strength, Mild Steel (grit blasted) | 10.0 N/mm |
| Mixed | |
| Colour, Mixed | Grey |
| Pot life, Mixed @ 22.0 °C 100 g mass | 40.0 min. |
| Resin | |
| Colour, Resin | White |
| Viscosity, DIN 54443 Resin Shear Rate 10 s⁻¹ | 85980.0 mPa·s (cP) |
| Viscosity, DIN 54443 Resin Shear Rate 50 s⁻¹ | 38570.0 mPa·s (cP) |
| Hardener | |
| Colour, Hardener | Black |
| Viscosity, DIN 54443 Hardener Shear Rate 10 s⁻¹ | 59530.0 mPa·s (cP) |
| Viscosity, DIN 54443 Hardener Shear Rate 50 s⁻¹ | 42860.0 mPa·s (cP) |
LOCTITE® EA 9461
2-part, thixotropic, structural bonding epoxy adhesive that cures to provide a toughened bond and is therefore ideal for joining dissimilar substrates.
