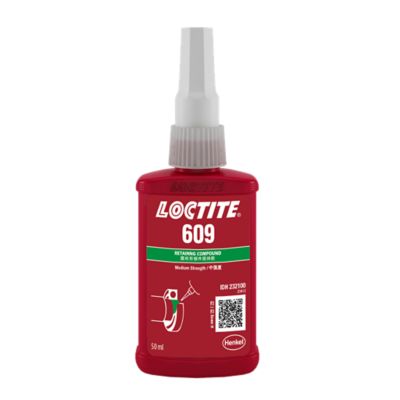

LOCTITE® 609
Features and Benefits
slide 1 of 2
A 1-part, high-strength, general purpose, anaerobic-curing retaining compound designed for bonding cylindrical fitting parts. Mil spec.
To lock bushings and sleeves in housings on shafts, augment press fits, or to bond any close-fitting cylindrical parts, LOCTITE® 609 is a good choice. The green, high-strength, anaerobic-curing retaining compound cures in the absence of air between close fitting metal surfaces, providing a high-strength and corrosion-free bond. Typical applications include rotor to shafts in fractional and subfractional horsepower motors.
Read More
Documents and Downloads
Looking for a TDS or SDS in another language?
Technical Information
| Agency approvals / certificates / specifications | ASTM D5363, MIL-R-46082B for existing designs |
| Application method | Dispense gun, Dispense system, Manual |
| Applications | For close fitting cylindrical parts, Retaining |
| Color | Green |
| Cure type | Anaerobic cure |
| Fixture time | 10.0 min. |
| Gap fill | 0.15 mm |
| Key characteristics | Fluorescent, Shear strength: high shear Strength, Viscosity: low viscosity |
| Operating temperature | -65.0 - 300.0 °F (-55.0 - 150.0 °C ) |
| Physical form | Liquid |
| Recommended for use with | Metal |
| Shear strength, Steel | 2300.0 psi (15.0 N/mm² ) |
| Specific gravity, @ 25.0 °C | 1.1 |
| Viscosity | 120.0 mPa·s (cP) |
LOCTITE® 609
A 1-part, high-strength, general purpose, anaerobic-curing retaining compound designed for bonding cylindrical fitting parts. Mil spec.
