LOCTITE® 271 - Tube 100.0/case

Features and Benefits

Available sizes:

Bottle

10.0/case

Bottle

10.0/case

Bottle

4.0/case

Tube

100.0/case

Bottle

10.0/case
TDS Download
High strength, low viscosity, red, anaerobic-curing threadlocking adhesive for locking and sealing threaded fasteners.
LOCTITE® 271 is a red, low viscosity, high strength, anaerobic-curing threadlocking adhesive for the prevention of fastener loosening due to heavy shock and vibration. It can tolerate slight contaminations of industrial oils and is suitable for all metal fasteners. It fluoresces under UV light – great for quality control.
  • Prevents unwanted movement, loosening, leaks and corrosion
  • Low viscosity
  • Fluorescent under UV for quality control
  • High strength - removable with heat
  • Seals threads - allows through-hole tapping
Read More

Documents and Downloads

Technical Data Sheet
LOCTITE® 271™
Download TDS
Safety Data Sheets and RoHs
  • Bottle 10.0/case - IDH 135380
  • Bottle 10.0/case - IDH 135381
  • Bottle 4.0/case - IDH 209743
  • Tube 100.0/case - IDH 232532
  • Bottle 10.0/case - IDH 88441
LOCTITE® 271, 10 ml Bottle 135380 en-US
IDH: 135380
EAN: 079340271210

Size Case: Bottle

Quantity: 10.0/case

Download SDS

Download RoHs
LOCTITE® 271, 1 l Bottle 209743 en-US
IDH: 209743
EAN: 079340271432

Size Case: Bottle

Quantity: 4.0/case

Download SDS

Download RoHs

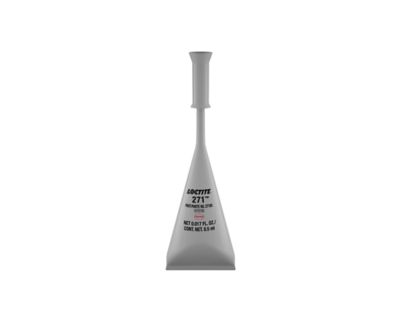

LOCTITE® 271, 0.5 ml Tube 232532 en-US
IDH: 232532
EAN: 079340271050

Size Case: Tube

Quantity: 100.0/case

Download SDS

Download RoHs
LOCTITE® 271, 250 ml Bottle 88441 en-US
IDH: 88441
EAN: 079340271418

Size Case: Bottle

Quantity: 10.0/case

Download SDS

Download RoHs
No documents found

Looking for a TDS or SDS in another language?

Search for TDS in another language
Search for SDS in another language

Technical Information

Chemical basis / base Methacrylate
Color Red
Fixture time 5.0 - 15.0 min.
Recommended for use with Metal: brass, Metal: steel, Metal: steel - stainless steel
Viscosity, Brookfield - RVT, @ 25.0 °C Spindle 1, speed 10 rpm 400.0 - 600.0 mPa·s (cP)

How to

Step by Step Guide

1. Preparation - Cleaning

It is recommended to use LOCTITE® SF 7070 to degrease and clean surfaces prior to applying LOCTITE 271 threadlocker.

2. Preparation - Activation

If cure speed is too slow due to passive metals (stainless steel, aluminum and plated metals) or low temperature (below 5°C), use activator LOCTITE® SF 7649 (see cure speed vs activator graph in the TDS).

3. Application

Apply liquid threadlocker to the engagement area. For manual dispensing, the use of a peristaltic handgun or the LOCTITE® Pro Pump is recommended to ensure a consistent application volume.

4a. Application - Through-Hole

Insert bolt and apply threadlocker to the exposed thread. Assemble nut and tighten to the correct/specified torque.

4b. Application - Blind Hole

Apply several drops of liquid threadlocker down the sides of the blind hole filling the lower third. Apply several drops to the bolt.

5. Assembly

Assemble and tighten. If several bolts are being assembled, torque them down to the correct value within the fixture.

6. Disassembly - Hand Tools

Disassemble with standard hand tools.

7a. Disassembly - Heat

If disassembly is not possible using normal hand tools, apply localized heat to approximately 250°C. Disassemble while hot.

7b. Disassembly After Heating - Hand Tools

Disassemble while hot with standard hand tools.

Hint

For the disassembly of corroded or seized parts, use LOCTITE® LB 8040 Freeze and Release.
