LOCTITE® AA A-671 - Bottle 2.0/case Structural Adhesive
Features and Benefits
slide 1 of 1
Product image in this size is not available.
Available sizes:
A dark green, 2-part, toughened, external mixing, thixotropic structural acrylic adhesive used for magnet bonding.
LOCTITE® AA A-671 is a 2-part structural adhesive for super fast-fixturing and ease of use thanks to external mixing application. It is non-flammable, 100% solids and has lower odor compared to other acrylic adhesives. Specifically designed for the bonding of magnets, it is used in permanent magnet brushes in DC motors, speaker assemblies, generators and magnetic assemblies.
- Super fast fixture time of 75 seconds
- External mixing application allows high production throughput and accommodates off-ratio mixing
- Designed for Surface Permanent Magnet (SPM) Bonding
- High impact resistance and good humidity resistance
- Non-flammable, 100% solids and has lower odor
Documents and Downloads
Safety Data Sheets and RoHs
- Hobbock/Pail 1.0/case - IDH 1255709
- Bottle 2.0/case - IDH 1256488
- Hobbock/Pail 1.0/case - IDH 1256501
LOCTITE® AA A-671, Part B, 19 l Hobbock/Pail 1255709 en-US
IDH:
1255709
EAN:
079340436565
Size Case: Hobbock/Pail
Quantity: 1.0/case
LOCTITE® AA A-671, Mixed, 4 l Bottle 1256488 en-US
IDH:
1256488
EAN:
079340438217
Size Case: Bottle
Quantity: 2.0/case

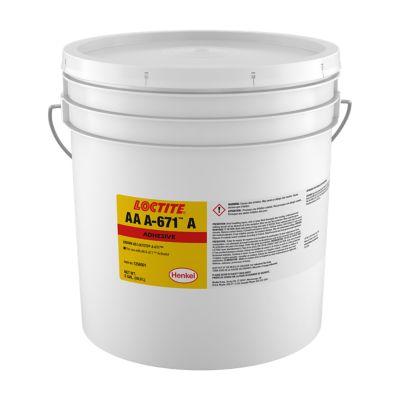

LOCTITE® AA A-671, Part A, 19 l Hobbock/Pail 1256501 en-US
IDH:
1256501
EAN:
079340438224
Size Case: Hobbock/Pail
Quantity: 1.0/case
No documents found
Looking for a TDS or SDS in another language?
Technical Information
| Cure type | Room temperature (ambient) cure |
| Key characteristics | Flammability: non-flammable, Odor: low odor, Thixotropic |
| Number of components | 2 part |
| Mixed | |
| Color, Mixed | Green |
| Fixture time, Mixed | 75.0 sec. |
| Shear strength, Steel (grit blasted) Mixed | >2000.0 psi (13.8 N/mm² ) |
| Resin | |
| Color, Resin | Yellow |
| Density, Resin @ 25.0 °C | 0.91 - 0.98 g/ml |
| Viscosity, Brookfield - RVF, Resin @ 25.0 °C Spindle 6, speed 20 rpm | 20000.0 - 25000.0 mPa·s (cP) |
| Hardener | |
| Color, Hardener | Blue |
| Density, Hardener @ 25.0 °C | 0.95 - 1.01 g/ml |
| Viscosity, Brookfield - RVF, Hardener @ 25.0 °C Spindle 6, speed 20 rpm | 20000.0 - 25000.0 mPa·s (cP) |
LOCTITE® AA A-671
A dark green, 2-part, toughened, external mixing, thixotropic structural acrylic adhesive used for magnet bonding.
