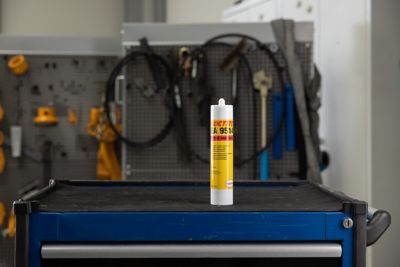

LOCTITE® EA 9514
Known as LOCTITE 9514
Features and Benefits
LOCTITE EA 9514 is a grey, 1-part epoxy-based magnet bonder with high resistance to temperature and impact.
LOCTITE® EA 9514 is a high impact and temperature resistant structural adhesive. The 1-part high performance epoxy is formulated for applications requiring toughness characteristics such as filter and magnet bonding. The product is suitable for gap filling and is resistant to operating temperatures up to +200°C. It offers high shear and peel strength, along with good chemical resistance. Suitable for induction curing.
- High impact resistance and very high shear strength of 45 N/mm²
- High temperature resistance up to +200°C
- Non-sag/high viscosity material suitable for vertical applications and automated placement
- Curing mechanism: Heat or induction
Documents and Downloads
Looking for a TDS or SDS in another language?
Technical Information
| Casson viscosity, cone & plate, @ 25.0 °C | 45.0 mPa·s (cP) |
| Colour | Grey |
| Peel strength, Mild Steel (grit blasted) | 9.5 N/mm |
LOCTITE® EA 9514
LOCTITE EA 9514 is a grey, 1-part epoxy-based magnet bonder with high resistance to temperature and impact.
