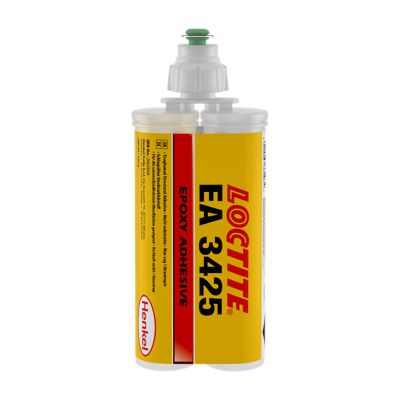

LOCTITE® EA 3425 Structural Adhesive
Known as LOCTITE 3425
Features and Benefits
LOCTITE EA 3425 is a white to yellow, 2-part, thixotropic, epoxy-based structural and magnet bonder with high impact and high humidity resistance.
LOCTITE® EA 3425 is a high impact and humidity resistant structural bonder. The yellow/white, 2-part thixotropic epoxy adhesive paste reliably bonds metals, magnets and large surface areas also with large gaps (up to 3mm). It provides high strength adhesion, high modulus and very good chemical resistance. It can be used in temperatures up to +120°C.
- High impact and high humidity resistance
- Non-sag characteristic supports high production cycles and application on vertical surfaces
- Suitable for Surface Permanent Magnet (SPM) and Interior Permanent Magnet (IPM) bonding
- Temperature resistance up to +120°C
Documents and Downloads
Looking for a TDS or SDS in another language?
Technical Information
| Fixture time | 240.0 min. |
| Mix ratio, by volume | 1 : 1 |
| Mixed | |
| Colour, Mixed | White, Yellow |
| Resin | |
| Colour, Resin | Beige |
| Specific gravity, Resin @ 25.0 °C | 1.34 - 1.4 |
| Viscosity, Brookfield - RVT, Resin @ 25.0 °C Spindle 7, speed 5 rpm | 1500000.0 - 3500000.0 mPa·s (cP) |
| Hardener | |
| Colour, Hardener | Beige |
| Specific gravity, Hardener @ 25.0 °C | 1.37 - 1.45 |
| Viscosity, Brookfield - RVT, Hardener @ 25.0 °C Spindle 7, speed 5 rpm | 100000.0 - 300000.0 mPa·s (cP) |
LOCTITE® EA 3425
LOCTITE EA 3425 is a white to yellow, 2-part, thixotropic, epoxy-based structural and magnet bonder with high impact and high humidity resistance.
