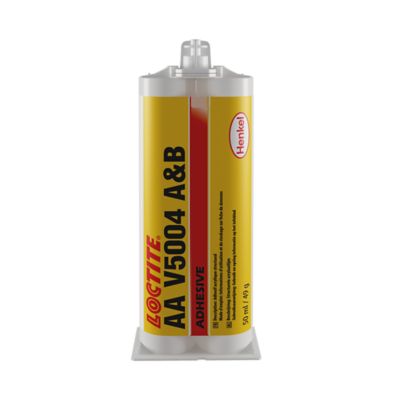

LOCTITE® AA V5004
Known as LOCTITE V5004
Features and Benefits
2-part structural acrylic adhesive which provides toughness and excellent adhesion to plastics, metals and composites.
LOCTITE® AA V5004 is a 2-part structural acrylic adhesive. The cured product is virtually transparent making it well suited for bonding applications requiring a clear, invisible bond line. This product will adhere to a wide range of substrates including most structural thermoplastics, thermosets, ceramics and metals. LOCTITE AA V5004 has a fixture time of 3 min and a shear strength of 21 N/mm².
- Medium viscosity
- Fast curing and leaves clear bond line after curing
- 2-part premix structural adhesive
- Good adhesion to plastics and metal
Documents and Downloads
Looking for a TDS or SDS in another language?
Technical Information
| Fixture time | 3.0 min. |
| Key characteristics | Premix |
| Mix ratio, by volume | 1 : 1 |
| Shear strength | 21.0 N/mm² |
| Work life | 0.5 min. |
| Resin | |
| Colour, Resin | Light blue |
| Specific gravity, Resin @ 25.0 °C | 1.0 |
| Viscosity, Brookfield - RVF, Resin @ 25.0 °C Spindle 6, speed 10 rpm | 16000.0 - 22000.0 mPa·s (cP) |
| Hardener | |
| Colour, Hardener | Light pink |
| Specific gravity, Hardener @ 25.0 °C | 1.0 |
| Viscosity, Brookfield - RVF, Hardener @ 25.0 °C Spindle 5, speed 10 rpm | 15000.0 - 21000.0 mPa·s (cP) |
