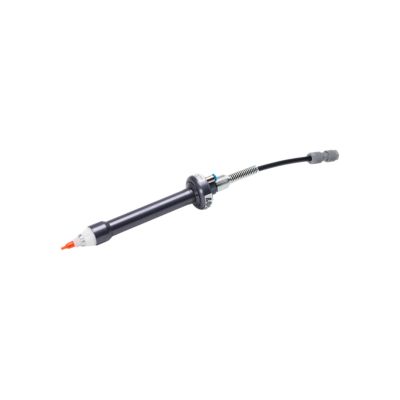

LOCTITE® Low Viscosity Pneumatic Handheld Applicator

Features and Benefits

The LOCTITE Low Viscosity Pneumatic Handheld Applicator Valve is suitable for use with a wide range of low viscosity LOCTITE products and is Henkel's most precise handheld applicator for cyanoacrylate adhesives.
The LOCTITE® Low Viscosity Pneumatic Handheld Applicator Valve is a pneumatically operated, adjustable seat valve designed to be used in conjunction with pressure-time dispense systems. It is suitable for use with a wide range of low viscosity LOCTITE® products and is Henkel's most precise handheld applicator for cyanoacrylate adhesives. The valve body and stem are PTFE coated to prevent premature curing. This valve can deliver very small drop sizes, even with low viscosity products. It can be used especially with cyanoacrylates and other low-pressure applications, up to 30 psi. NOTE: This valve is not recommended for use with light curing adhesives.
  • Specifically designed for the dispensing of low viscosity cyanoacrylate and anaerobic adhesives (under 10,000 mPa·s)
  • Slim, ergonomic design
  • Forward closing to avoid air entrapment and potential premature curing of cyanoacrylates
  • Dispenses repeatable drop sizes down to 0.005 g
  • Included in the Box: (1) Low Viscosity Handheld Applicator Valve, (1) needle variety kit, (1) silicone grease, (1) 2 m product feed line, PTFE lined, 6.35 mm OD, (1) 2 m pneumatic tubing, (1) operating manual
  • Easy integration with LOCTITE reservoirs
  • Stroke adjustment for fine-tuning of dispense characteristics
  • Easy repair/replacement of wetted components
Read More

Technical Information

Applications Dispensing adhesives
Dispense patterns Beads, Dots, Drops
Fluid pressure, Recommended 4.0 - 30.0 psi
Key characteristics, Recommended Stroke adjustment, Viscosity: low viscosity
Operating type Pneumatic
Used to dispense, Recommended Cyanoacrylates, Retaining compounds, Threadlockers
Viscosity, Recommended 0.0 - 10000.0 mPa·s
