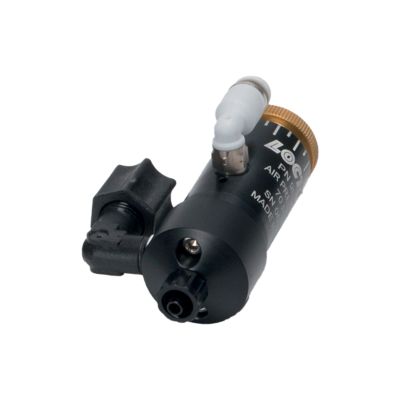

LOCTITE® Light Cure Dispense Valve

Features and Benefits

The LOCTITE Light Cure Dispense Valve is a diaphragm valve suitable for low to medium viscosity light cure acrylics and anaerobic adhesives.
The LOCTITE® Light Cure Dispense Valve is a diaphragm valve that provides high resolution stroke adjustment, resulting in consistent flow control and bubble-free, no-drip dispensing for low to medium viscosity LOCTITE light curable adhesives and anaerobic adhesives. The Light Cure Valve can be used with LOCTITE® integrated dispense reservoirs to form a complete dispensing system.
  • Compact size and weight
  • Simple design which facilitates field repair
  • Bubble free, no-drip dispensing
  • Easy cleaning without valve demounting
  • Included in the Box: (1) Light Cure Valve, (1) air line tubing, 1.52 m, (1) product tubing, 1.83 m., 6.35 mm OD, PTFE-lined, (1) valve mount screw, (1) needle kit, (1) operating manual
  • Easy integration with LOCTITE reservoirs and controllers
  • Seal-less design
  • Specifically designed for dispensing LOCTITE light cure and anaerobic adhesive
  • High resolution stroke adjustment
  • Acetal copolymer valve chamber
  • Components required for operation: (1) valve, (1) integrated dispenser
Read More

Technical Information

Air input pressure, Recommended 70.0 - 90.0 psi
Applications Dispensing adhesives
Dispense patterns Beads, Dots, Drops
Fluid pressure, Recommended 70.0 psi
Key characteristics, Recommended Stroke adjustment, Viscosity: low to medium viscosity
Operating type Diaphragm, High precision
Used to dispense, Recommended Light cure acrylics, Retaining compounds, Threadlockers
