LOCTITE® 545 - Tube 100.0/case
Features and Benefits
Available sizes:
High lubricity thread sealant for locking and sealing metal pipes and small fittings with fine threads.
LOCTITE® 545 is a pipe thread sealant designed for locking and sealing of metal pipes and fittings. It is specially formulated to offer high lubricity for easy assembly and removal. Recommended for fine threaded fittings as used in hydraulic and pneumatic installations and small fittings in general. Suitable for fittings up to 50 mm in diameter including pneumatic and hydraulic fittings.
- Excellent solvent resistance
- Contains no fillers or particles that could contaminate system fluids, foul valves, or clog fine filters and screens
- ABSSM approved
- CFIA approved
Documents and Downloads
Safety Data Sheets and RoHs
- Bottle 10.0/case - IDH 135486
- Bottle 10.0/case - IDH 195662
- Tube 100.0/case - IDH 234428
- Bottle 10.0/case - IDH 303420
LOCTITE® 545, 50 ml Bottle 135486 en-CA
IDH:
135486
EAN:
079340545311
Size Case: Bottle
Quantity: 10.0/case
LOCTITE® 545, 250 ml Bottle 195662 en-CA
IDH:
195662
EAN:
079340545410
Size Case: Bottle
Quantity: 10.0/case

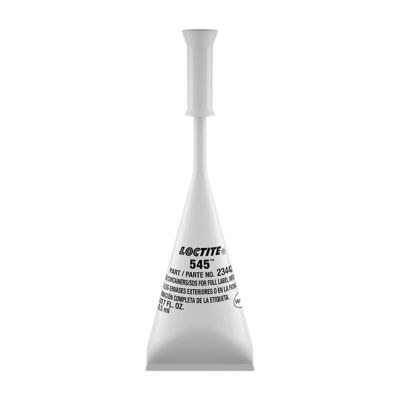

LOCTITE® 545, 0.50 ml Tube 234428 en-CA
IDH:
234428
EAN:
079340545052
Size Case: Tube
Quantity: 100.0/case
LOCTITE® 545, 10 ml Bottle 303420 en-CA
IDH:
303420
EAN:
079340324299
Size Case: Bottle
Quantity: 10.0/case
No documents found
Looking for a TDS or SDS in another language?
Technical Information
| Application method | Dispense system, Manual |
| Applications | Hydraulic/pneumatic sealing, Pipe sealing, Thread sealing |
| Breakaway torque, Steel M10 | 2.0 N·m (20.0 in./lb. ) |
| Color | Purple |
| Cure type | Anaerobic cure |
| Key characteristics | Lubricity: high lubricity, No fillers/particles, Solvent resistant, Viscosity: medium viscosity |
| Operating temperature | -55.0 - 150.0 °C (-65.0 - 300.0 °F ) |
| Physical form | Liquid |
| Recommended for use with | Metal, Thread type: fine |
| Viscosity, 20 RPM | 15000.0 mPa·s (cP) |
LOCTITE® 545
High lubricity thread sealant for locking and sealing metal pipes and small fittings with fine threads.
