LOCTITE® EA M-31CL
Features and Benefits
Available sizes:
A 2-part, clear, low-viscosity liquid epoxy adhesive, which cures at room temperature and is approved for use in the medical industry.
When optical clarity and excellent structural, mechanical and electrical insulating properties are required, try LOCTITE® EA M-31CL. This 2-part, clear, colorless to slightly yellow, low-viscosity liquid epoxy adhesive cures at room temperature and forms an ultra-clear adhesive bond line with excellent impact resistance and minimal shrinkage. It can be used for a wide range of applications, including bonding, small potting, staking and laminating applications. ISO 10993 approved for use in the medical industry.
Read More
Documents and Downloads
Safety Data Sheets and RoHs
- Standard Cartridge 10.0/case - IDH 235021

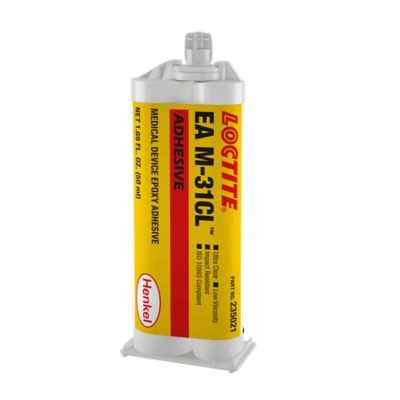

LOCTITE® EA M-31CL, 50 ml Standard Cartridge 235021 en-CA
IDH:
235021
EAN:
079340306738
Size Case: Standard Cartridge
Quantity: 10.0/case
No documents found
Looking for a TDS or SDS in another language?
Technical Information
| Applications | Structural bonding |
| FEA (finite element analysis) | Finite strain, Viscoelastic |
| Fixture time | 160.0 min. |
| Mix ratio, by volume | 2 : 1 |
| Shear strength | 21.4 N/mm² |
| Work life | 30.0 min. |
| Mixed | |
| Color, Mixed | Ultra clear |
| Specific gravity, Mixed @ 25.0 °C | 1.07 |
| Resin | |
| Color, Resin | Clear |
| Viscosity, Brookfield - RVT, Resin @ 25.0 °C Spindle 6, speed 20 rpm | 9000.0 - 12000.0 mPa·s (cP) |
| Hardener | |
| Color, Hardener | Clear |
| Viscosity, Brookfield - RVT, Hardener @ 25.0 °C Spindle 5, speed 20 rpm | 1500.0 - 9000.0 mPa·s (cP) |
LOCTITE® EA M-31CL
A 2-part, clear, low-viscosity liquid epoxy adhesive, which cures at room temperature and is approved for use in the medical industry.
