LOCTITE® EA E-60NC - Standard Cartridge 10.0/case
Features and Benefits
Available sizes:
2-part, flowable, industrial grade epoxy liquid potting compound with extended work life.
LOCTITE® EA E-60NC is a black, opaque, 2-part, flowable, industrial grade epoxy liquid potting compound with extended work life. The mixture cures at room temperature to form a rigid encapsulant. When cured it provides excellent environmental and chemical resistance and insulation. It is designed for bonding, potting and encapsulating electrical components which are sensitive to corrosion.
- Extended work life
- Non-corrosive to metallic components on PC Boards and electronic assemblies
- Used in electronic applications, for component attachment to boards, housing assembly and potting
- Provides excellent environmental and chemical resistance and insulation
- Viscoelastic & Finite Strain FEA data cards available
Documents and Downloads
Safety Data Sheets and RoHs
- Hobbock/Pail 1.0/case - IDH 233988
- Hobbock/Pail 1.0/case - IDH 233990
- Standard Cartridge 10.0/case - IDH 237113
- Standard Cartridge 10.0/case - IDH 237114
- Standard Cartridge 6.0/case - IDH 237115
LOCTITE® EA E-60NC, Part A, 5 gal Hobbock/Pail 233988 en-CA
IDH:
233988
EAN:
079340293274
Size Case: Hobbock/Pail
Quantity: 1.0/case
LOCTITE® EA E-60NC, Part B, 5 gal Hobbock/Pail 233990 en-CA
IDH:
233990
EAN:
079340293281
Size Case: Hobbock/Pail
Quantity: 1.0/case

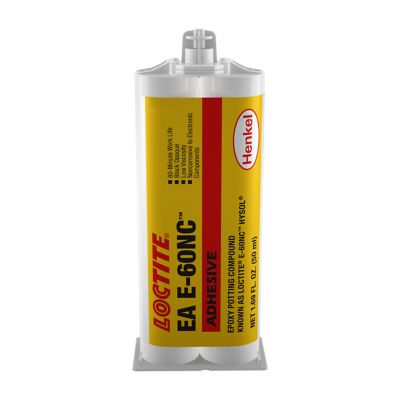

LOCTITE® EA E-60NC, 50 ml Standard Cartridge 237113 en-CA
IDH:
237113
EAN:
079340293243
Size Case: Standard Cartridge
Quantity: 10.0/case
LOCTITE® EA E-60NC, 200 ml Standard Cartridge 237114 en-CA
IDH:
237114
EAN:
079340293250
Size Case: Standard Cartridge
Quantity: 10.0/case
LOCTITE® EA E-60NC, 400 ml Standard Cartridge 237115 en-CA
IDH:
237115
EAN:
079340293267
Size Case: Standard Cartridge
Quantity: 6.0/case
No documents found
Looking for a TDS or SDS in another language?
Technical Information
| Applications | Structural bonding |
| Cure type | Room temperature (ambient) cure |
| FEA (finite element analysis) | Finite strain, Viscoelastic |
| Key characteristics | Chemical resistant, Corrosion free, Environmental resistance, Flowable, Work life: extended work life |
| Number of components | 2 part |
| Physical form | Liquid |
| Recommended for use with | Electrometric material, Metal: aluminium, Metal: steel, Metal: steel - stainless steel, Polyamide (nylon), Polycarbonate, Wood |
| Mixed | |
| Color, Mixed | Black |
| Mix ratio, by volume, Mixed | 1 : 1 |
| Mix ratio, by weight, Mixed | 100 : 91 |
| Resin | |
| Color, Resin | Black |
| Viscosity, Brookfield, Resin @ 25.0 °C | 5200.0 - 7200.0 mPa·s (cP) |
| Hardener | |
| Color, Hardener | Light yellow |
| Viscosity, Brookfield, Hardener @ 25.0 °C | 12000.0 - 14000.0 mPa·s (cP) |
LOCTITE® EA E-60NC
2-part, flowable, industrial grade epoxy liquid potting compound with extended work life.
