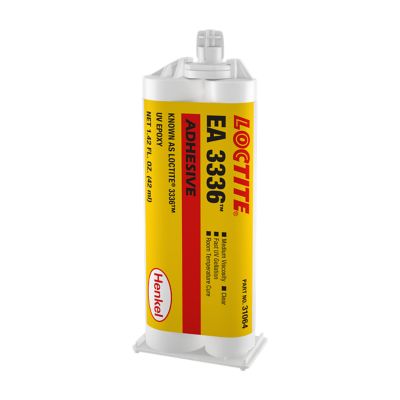

LOCTITE® EA 3336
Features and Benefits
Available sizes:
Epoxy colorless/slightly yellowish adhesive for applications demanding high structural, mechanical, and electrical insulating properties.
LOCTITE® EA 3336 is a colorless to slightly yellowish, 2-part, medium-viscosity, epoxy adhesive liquid for potting, bonding, sealing, and laminating applications where excellent structural, mechanical, and electrical insulating properties (and product clarity) are required. Cured using UV light and heat, the product offers good resistance to both the environment and chemicals.
- Excellent structural and mechanical properties
- Excellent electrical insulation
- UV cure can be accelerated by heat
- Good environmental resistance
- Excellent chemical resistance
- Excellent product clarity
Documents and Downloads
Safety Data Sheets and RoHs
- Dual cartridge 10.0/case - IDH 235349
LOCTITE® EA 3336, 42 ml Dual cartridge 235349 en-CA
IDH:
235349
EAN:
079340310643
Size Case: Dual cartridge
Quantity: 10.0/case
No documents found
Looking for a TDS or SDS in another language?
Technical Information
| Cure type | UV cure |
| Key characteristics | Viscosity: medium viscosity |
| Number of components | 2 part |
| Physical form | Liquid |
| Mixed | |
| Color, Mixed | Clear |
| Viscosity, Brookfield - RVT, Mixed @ 25.0 °C Spindle 6, speed 20 rpm | 14500.0 mPa·s (cP) |
| Resin | |
| Color, Resin | Green |
| Viscosity, Brookfield - RVT, Resin @ 25.0 °C Spindle 6, speed 20 rpm | 8000.0 - 12000.0 mPa·s (cP) |
| Hardener | |
| Color, Hardener | Yellow |
| Viscosity, Brookfield - RVT, Hardener @ 25.0 °C Spindle 6, speed 20 rpm | 1000.0 - 3000.0 mPa·s (cP) |
LOCTITE® EA 3336
Epoxy colorless/slightly yellowish adhesive for applications demanding high structural, mechanical, and electrical insulating properties.
