LOCTITE® AA 326 - Bottle 10.0/case
Features and Benefits
Available sizes:
LOCTITE AA 326 is a yellow to amber, 2-step, no mix medium viscosity (thixotropic) structural acrylic and adhesive suitable for magnet bonding.
LOCTITE® AA 326 is a general-purpose structural adhesive for fast cure and high shear strength. Among other applications, the 2-step acrylic is used in magnet bonding in electric motors. It has good adhesion to different types of ferrites, a fixture time of less than 3 minutes and a high shear strength of 15 N/mm². It can be used in temperatures up to +120°C. Requires LOCTITE SF 7649 to activate.
- High shear strength of 15 N/mm²
- Fast fixture time within minutes (< 3 min)
- Medium viscosity (thixotropic) supports ease of automation and non-sag behavior
- Temperature resistance up to +120°C
- Viscoelastic & Finite Strain FEA data cards available
Documents and Downloads
Safety Data Sheets and RoHs
- Bottle 10.0/case - IDH 135402
- Bottle 4.0/case - IDH 135404

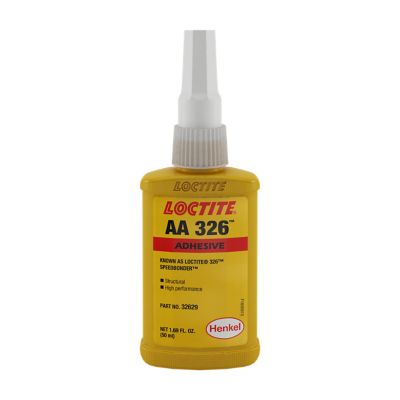

LOCTITE® AA 326, 50 ml Bottle 135402 en-CA
IDH:
135402
EAN:
079340326293
Size Case: Bottle
Quantity: 10.0/case
LOCTITE® AA 326, 1 l Bottle 135404 en-CA
IDH:
135404
EAN:
079340326859
Size Case: Bottle
Quantity: 4.0/case
No documents found
Looking for a TDS or SDS in another language?
Additional Documents
Technical Information
Applications | Structural bonding |
Chemical basis / base | Methacrylate |
Color | Amber, Yellow |
Cure type | Activator cure, Anaerobic cure |
FEA (finite element analysis) | Finite strain, Viscoelastic |
Fixture time | 3.0 min. |
Key characteristics | Mix: no mix required |
Shear strength | 15.0 N/mm² |
Viscosity, Brookfield - RVT, @ 25.0 °C Spindle 6, speed 20 rpm | 14000.0 - 22000.0 mPa·s (cP) |
Viscosity, EN 12092 - MV, @ 25.0 °C Shear Rate 36 s⁻¹ | 10000.0 - 20000.0 mPa·s (cP) |
