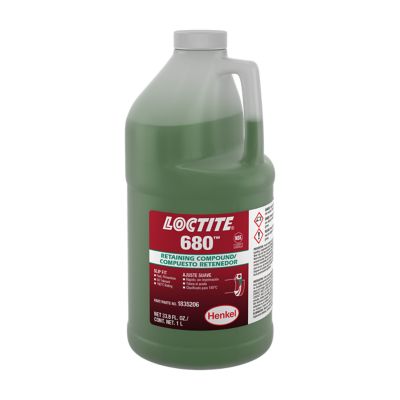

LOCTITE® 680 - Bottle 1.0/case
Features and Benefits
Available sizes:
High strength, methacrylate ester acrylic liquid designed for the bonding of cylindrical fitting parts, particularly where low viscosity is required.
LOCTITE® 680 is a green, high strength, methacrylate ester acrylic liquid designed for the bonding of cylindrical fitting parts, particularly where low viscosity is required. The product prevents loosening and leakage from shock and vibration. It provides robust curing performance. It works on active metals (e.g. mild steel) and on passive substrates (e.g. stainless steel and plated surfaces).
- Low viscosity
- Certified to ANSI/NSF Standard 61 for use in commercial and residential potable water systems not exceeding +82°C (+179.6 °F)
- Cures when confined in the absence of air between close fitting metal surfaces
- Tolerates minor surface contaminations from various oils
- Offers high temperature performance and oil tolerance
- Provides robust curing performance
Documents and Downloads
Safety Data Sheets and RoHs
- Bottle 10.0/case - IDH 1835196
- Bottle 10.0/case - IDH 1835201
- Bottle 10.0/case - IDH 1835205
- Bottle 1.0/case - IDH 1835206
LOCTITE® 680, 250 ml Bottle 1835196 en-CA
IDH:
1835196
EAN:
079340006850
Size Case: Bottle
Quantity: 10.0/case
LOCTITE® 680, 50 ml Bottle 1835201 en-CA
IDH:
1835201
EAN:
079340006843
Size Case: Bottle
Quantity: 10.0/case
LOCTITE® 680, 1 l Bottle 1835206 en-CA
IDH:
1835206
EAN:
079340006867
Size Case: Bottle
Quantity: 1.0/case
No documents found
Looking for a TDS or SDS in another language?
Technical Information
| Agency approvals / certificates / specifications | NSF/ANSI, norm 61 |
| Application method | Dispense system, Manual, Pressure |
| Applications | For loose fitting parts, For slip fitted parts, Retaining |
| Color | Green |
| Cure type | Anaerobic cure |
| Fixture time | 4.0 min. |
| Full cure time, @ 22.0 °C | 24.0 hr. |
| Key characteristics | Fluorescent, Oil tolerant, Primerless, Strength: high strength |
| Number of components | 1 part |
| Physical form | Liquid |
| Recommended for use with | Metal |
| Shear strength, Steel | 4000.0 psi |
| Specific gravity, @ 25.0 °C | 1.1 |
| Viscosity, Brookfield - RVT, @ 25.0 °C Spindle 3, speed 20 rpm | 750.0 - 1750.0 mPa·s (cP) |
| Viscosity, cone & plate, @ 25.0 °C Shear Rate 129 s⁻¹ | 650.0 - 1850.0 mPa·s (cP) |
LOCTITE® 680
High strength, methacrylate ester acrylic liquid designed for the bonding of cylindrical fitting parts, particularly where low viscosity is required.
