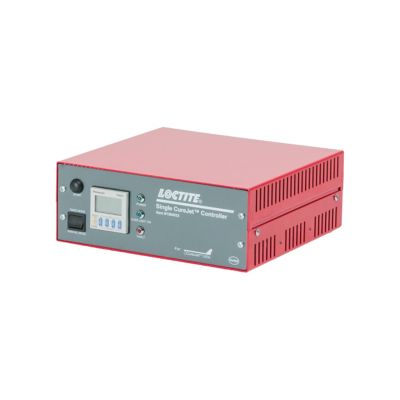

LOCTITE® CL28 CureJet LED Spot Curing Single Controller
Features and Benefits
Designed for simple and easy control of LOCTITE® CL28 CureJet LED Spot Curing Light Sources for curing UV and visible light cure adhesives.
The LOCTITE® CL28 CureJet LED Spot Curing Single Controller is used with the LOCTITE CL28 CureJet LED Spot Curing Light Sources to cure UV and visible light cure adhesives. When the unit is switched on, the proper electrical power is supplied to the LED, resulting in immediate full power. The digital timer (0.1 to 999.9 seconds) allows for setting the exposure time to the ultimate value required for proper curing. This controller can be actuated by a manual start button, a foot switch (included), or an external controller such as a customer-supplied PLC.
Read More
Technical Information
| Applications | LED spot curing |
| Bulb type, Recommended | LED |
| Light intensity, For 380nm source | 1.0 - 18.0 W/cm² |
| Light intensity, For 405nm source | 1.0 - 27.0 W/cm² |
| Operating type | UV vis |
| Used to dispense | UV and visible light cure adhesives |
| Wavelength, Item #2183339 | 380.0 nm |
| Wavelength, Item #2183340 | 405.0 nm |
How to
LOCTITE CL28 CureJet LED System Demo Video
LOCTITE® CL28 CureJet LED Spot Curing Single Controller
Designed for simple and easy control of LOCTITE® CL28 CureJet LED Spot Curing Light Sources for curing UV and visible light cure adhesives.
