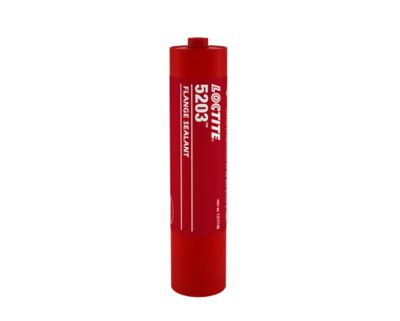

LOCTITE® 5203
Features and Benefits
Low strength gasketing product for machined metal flanges where easy disassembly is vital. For gaps up to 0.125 mm.
LOCTITE® 5203 is a methacrylate-based gasketing product that is ideal where very low strength is of paramount importance (ease of disassembly). Designed for use with machined, rigid metal flanges, the product demonstrates a fixture time of 10 minutes (steel) and 20 minutes (aluminum). It cures anaerobically and is suitable for gaps up to 0.125 mm.
- Very low strength for ease of disassembly
- Designed for machined metal flanges
- Seals close fitting joints
Documents and Downloads
Looking for a TDS or SDS in another language?
Technical Information
| Chemical basis / base | Methacrylate |
| Color | Red |
| Fixture time | 10.0 - 20.0 min. |
| Gap fill | 0.125 mm |
| Lab shear strength | 1.0 N/mm² |
| Recommended for use with | Metal: aluminium, Metal: steel |
| Viscosity, Brookfield - RVT, @ 25.0 °C Spindle 7, speed 2.5 rpm | 200000.0 - 450000.0 mPa·s (cP) |
| Viscosity, Brookfield - RVT, @ 25.0 °C Spindle 7, speed 20 rpm | 50000.0 - 100000.0 mPa·s (cP) |
