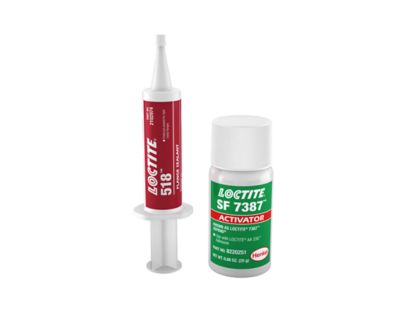

LOCTITE® 518 - Mixed 5.0/case
Features and Benefits
Available sizes:
This general purpose, semi-flexible anaerobic-curing gasketing product is ideal for sealing close fitting, rigid machine flanges made of aluminum, iron or steel.
LOCTITE® 518 is a general purpose, primerless, semi-flexible, form-in-place anaerobic flange sealant. It cures – even in the presence of minor surface contaminants – to seal close fitting joints between rigid metal flanges, and will flex with minor flange movements. It provides resistance to low pressures immediately after assembly of flanges and is ideal for use on aluminum substrates where you need very good flexibility. Typically used as a form-in-place gasket for pumps, thermostats, compressors, transmission housings and axle covers, it not only works on active metals (e.g. mild steel) but also on passive substrates, such as aluminum with a low copper content. You can expect gap performance to 0.25mm (0.01").
- Semi-flexible, medium-strength anaerobic flange gasket
- For active and inactive rigid metal flanges
- Cures through minor surface contamination
- Adapts to flange surface irregularities and gaps up to 0.25 mm
- Gel-type consistency
- Seals instantly against low pressure
- Reduces inventory costs – no need for large inventory of cut gaskets
- Resists high pressure when fully cured
- No compression set or misaligned gaskets
- Easy to automate
- Reduces process costs – eliminates manual assembly of conventional gaskets
- NSF P1 Reg. No. 123758
Documents and Downloads
Safety Data Sheets and RoHs
- Tube 6.0/case - IDH 2096058
- Standard Cartridge 10.0/case - IDH 2096061
- Tube 12.0/case - IDH 2096062
- Tube 10.0/case - IDH 2096064
- Mixed 5.0/case - IDH 2102974
- Mixed 10.0/case - IDH 2102986
No documents found
Looking for a TDS or SDS in another language?
Additional Documents
Technical Information
| Application method | Dispense system, Manual |
| Applications | Rigid assembly gasketing, Sealing |
| Chemical basis / base | Dimethacrylate ester |
| Color | Red |
| Cure type | Anaerobic cure |
| Fixture time, Steel | 25.0 min. |
| Gap fill, Unprimed | 0.25 mm |
| Key characteristics | Fluorescent, For machined, rigid flanges, Immediate low pressure sealing, Strength: medium strength, Surface contamination-tolerant, Thixotropic |
| Number of components | 1 part |
| Operating temperature | -55.0 - 150.0 °C (-65.0 - 300.0 °F ) |
| Physical form | Gel |
| Recommended for use with | Metal: aluminium, Metal: iron - cast iron, Metal: passive metal, Metal: steel |
| Specific gravity, @ 25.0 °C | 1.1 |
| Storage temperature | 8.0 - 21.0 °C |
| Viscosity | 750000.0 mPa·s (cP) |
LOCTITE® 518
This general purpose, semi-flexible anaerobic-curing gasketing product is ideal for sealing close fitting, rigid machine flanges made of aluminum, iron or steel.
