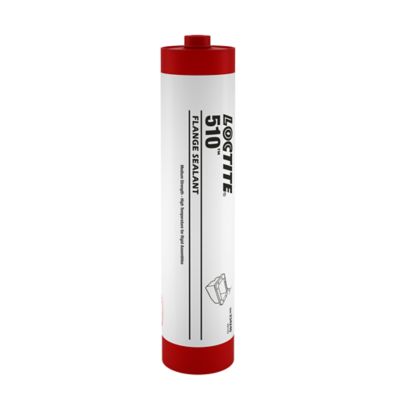

LOCTITE® 510 - Standard Cartridge 10.0/case
Features and Benefits
Available sizes:
LOCTITE 510 is a high temperature and chemical resistant gasketing product that is ideal for use on rigid flanges.
LOCTITE® 510 is a high temperature resistant anaerobic sealant which cures when confined in the absence of air between close-fitting metal surfaces. Typical applications include sealing rigid flange faces on transmissions and motor casings. It ensures an instant, low-pressure seal. The product increases the torque capacity of assembled flanges.
- For metal flanges
- High temperature resistant flange gasket
- Adapts to flange surface irregularities and scratches up to 0.25 mm
- Increases the torque capacity of assembled flanges
- P1 NSF Reg. No.: 123007
Documents and Downloads
Safety Data Sheets and RoHs
- Tube 10.0/case - IDH 135474
- Tube 10.0/case - IDH 234225
- Standard Cartridge 10.0/case - IDH 234240
LOCTITE® 510, 50 ml Tube 135474 en-CA
IDH:
135474
EAN:
079340510319
Size Case: Tube
Quantity: 10.0/case
LOCTITE® 510, 250 ml Tube 234225 en-CA
IDH:
234225
EAN:
079340510418
Size Case: Tube
Quantity: 10.0/case
LOCTITE® 510, 300 ml Standard Cartridge 234240 en-CA
IDH:
234240
EAN:
079340510746
Size Case: Standard Cartridge
Quantity: 10.0/case
No documents found
Looking for a TDS or SDS in another language?
Technical Information
| Application method | Dispense system, Manual, Screen printing |
| Applications | For close fitting parts, For high temperature applications, Rigid assembly gasketing, Sealing |
| Chemical basis / base | Dimethacrylate ester |
| Color | Pink |
| Cure type | Anaerobic cure |
| Fixture time, Steel | 25.0 min. |
| Gap fill, Unprimed | 0.25 mm |
| Key characteristics | Chemical resistant, For machined, rigid flanges, Strength: medium strength, Thixotropic |
| Number of components | 1 part |
| Operating temperature | -65.0 - 400.0 °F (-55.0 - 200.0 °C ) |
| Physical form | Gel |
| Recommended for use with | Metal: aluminium, Metal: steel |
| Storage temperature | 8.0 - 21.0 °C |
| Viscosity, 20 RPM | 90000.0 mPa·s (cP) |
LOCTITE® 510
LOCTITE 510 is a high temperature and chemical resistant gasketing product that is ideal for use on rigid flanges.
