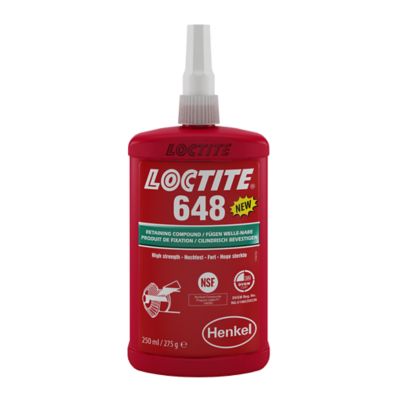

LOCTITE® 648 - Bottle 12.0/case
Features and Benefits
slide 1 of 1
Available sizes:
A 1-part, low-viscosity, high-strength, anaerobic-curing retaining compound designed for bonding cylindrical fitting parts. Even works on slightly oily surfaces, e.g., from various oils, such as cutting fluids.
When you’re working with holding gears and sprockets on gearbox shafts, or rotors on electric motor shafts, LOCTITE® 648 is ideal for preventing loosening and leakage due to shock and vibration. This green, low-viscosity, high-strength, anaerobic-curing retaining compound provides reliable bonds on cylindrical assemblies, even when exposed to high-temperature environments. It cures on active metals (e.g. mild steel) as well as passive substrates like stainless steel and plated surfaces, and it even tolerates minor surface contamination from oils such as cutting, lubrication, anti-corrosion and protection fluids, without the use of a primer or cleaner.
- Works on active and passive substrates without primer
- High strength and oil resistance
- Temperature-resistant up to 180°C (355°F)
- Fluorescent under UV for quality control
- Low viscosity
Documents and Downloads
Safety Data Sheets and RoHs
- Bag in Box 1.0/case - IDH 1804391
- Bottle 12.0/case - IDH 1804416
- Bottle 10.0/case - IDH 1804971
LOCTITE® 648, 2 l Bag in Box 1804391 en-NG
IDH:
1804391
EAN:
5010266007199
Size Case: Bag in Box
Quantity: 1.0/case
LOCTITE® 648, 50 ml Bottle 1804416 en-NG
IDH:
1804416
EAN:
5010266006659
Size Case: Bottle
Quantity: 12.0/case
LOCTITE® 648, 250 ml Bottle 1804971 en-NG
IDH:
1804971
EAN:
5010266006451
Size Case: Bottle
Quantity: 10.0/case
No documents found
Looking for a TDS or SDS in another language?
Additional Documents
Technical Information
| Agency approvals / certificates / specifications | DVGW (EN 751-1): NG 5146C00236, NSF P1 Reg. No 148350, WRAS (BS 6920): 0808532 |
| Colour | Green |
| Fixture time | 3.0 min. |
| Gap fill | 0.15 mm |
| Key characteristics | Oil tolerant, Strength: high strength, Temperature resistant |
| Operating temperature | -55.0 - 180.0 °C (-65.0 - 355.0 °F ) |
| Recommended for use with | Metal: steel |
| Shear strength, Steel | 27.0 N/mm² (3900.0 psi ) |
| Viscosity | 500.0 mPa·s (cP) |
LOCTITE® 648
A 1-part, low-viscosity, high-strength, anaerobic-curing retaining compound designed for bonding cylindrical fitting parts. Even works on slightly oily surfaces, e.g., from various oils, such as cutting fluids.
